Code is a system of modular lighting components, arranged to create individual and beautiful light fixtures. Created with hand-blown glass and solid brass, the designs and namesake are drawn from the dots and dashes of Morse code.
Following several years of development, we have devised an innovative system of modular components, each of which are connected and powered with a simple screw-together mechanism. The components are then arranged in a multitude of ways to create different linear designs and are easily connected together by hand on site with minimal effort.
The code system also allows the product to be broken down to reduce packaging size from our factory.
Configurations:
Kilo (1 globe pendant)
Xray (2 globe pendant)- 2 glass spheres together
Charlie Tango (2 globe pendant)- 2 glass spheres separated
Bravo Tango (3 globe pendant)- 3 glass sphere together
Delta Kilo (3 globe Pendant) – 2 glass spheres a space then 1 glass sphere 3D AND AR VIEW

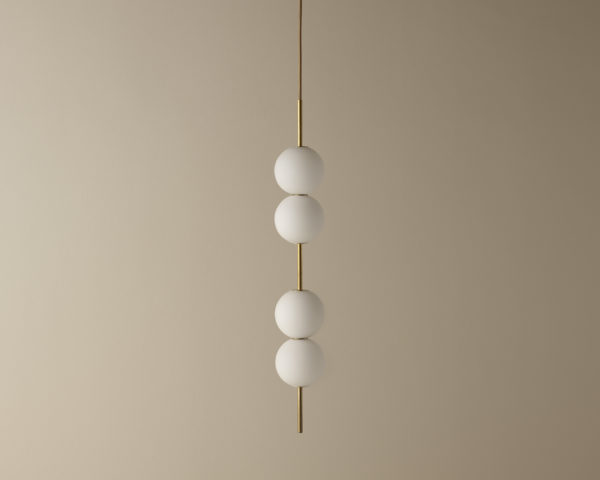

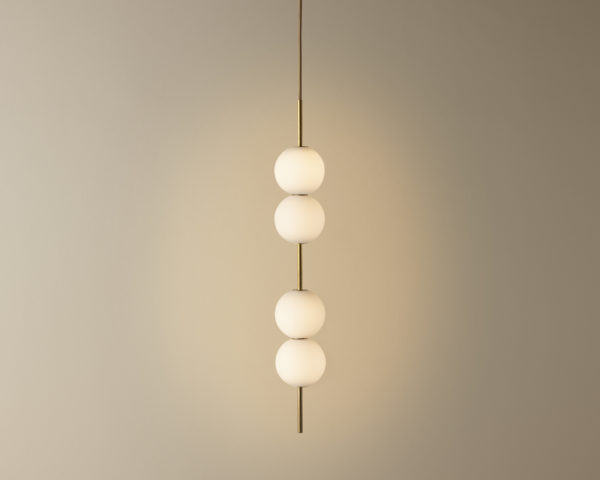

Delta Delta Tango (4 globe pendant)- 2 glass spheres a separation then 2 sphere PICTURED
Wattage & Colour temperature: 7W-28W, 750LM max, Soft White 3000K
Finish:
Frosted White Glass with Brass
Frosted White Glass with Whiskey Brass (Aged Brass) or Midnight Brass (Blackened Brass)
Cable: 1800mm Linen Woven
Dimming options: 1-10v, 10v PWM, Resistance (DALI available on request)
REMOTE DRIVER: MEAN WELL HLG-40H-24-AB- Purchased additionally (plus external driver $115)
size: 171mm x 61.5mm x 36.8mm
required for: Code Pendants
pricing: (RRP: $115 ) remote driver
BLACK CORD FOR BLACKENED BRASS OPTIONAL AT $66.00 EXTRA. PLEASE ORDER OVER THE PHONE
NOTE: note aged and blackened brass add 4 weeks onto lead times for this process
For enquiries on ETA and prices please contact workshopped at orders@workshopped.com.au or 02 91464353
Swatches as colour reference for Brass Whiskey Brass (Aged Brass) and Midnight Brass (Blackened Brass)
